Description

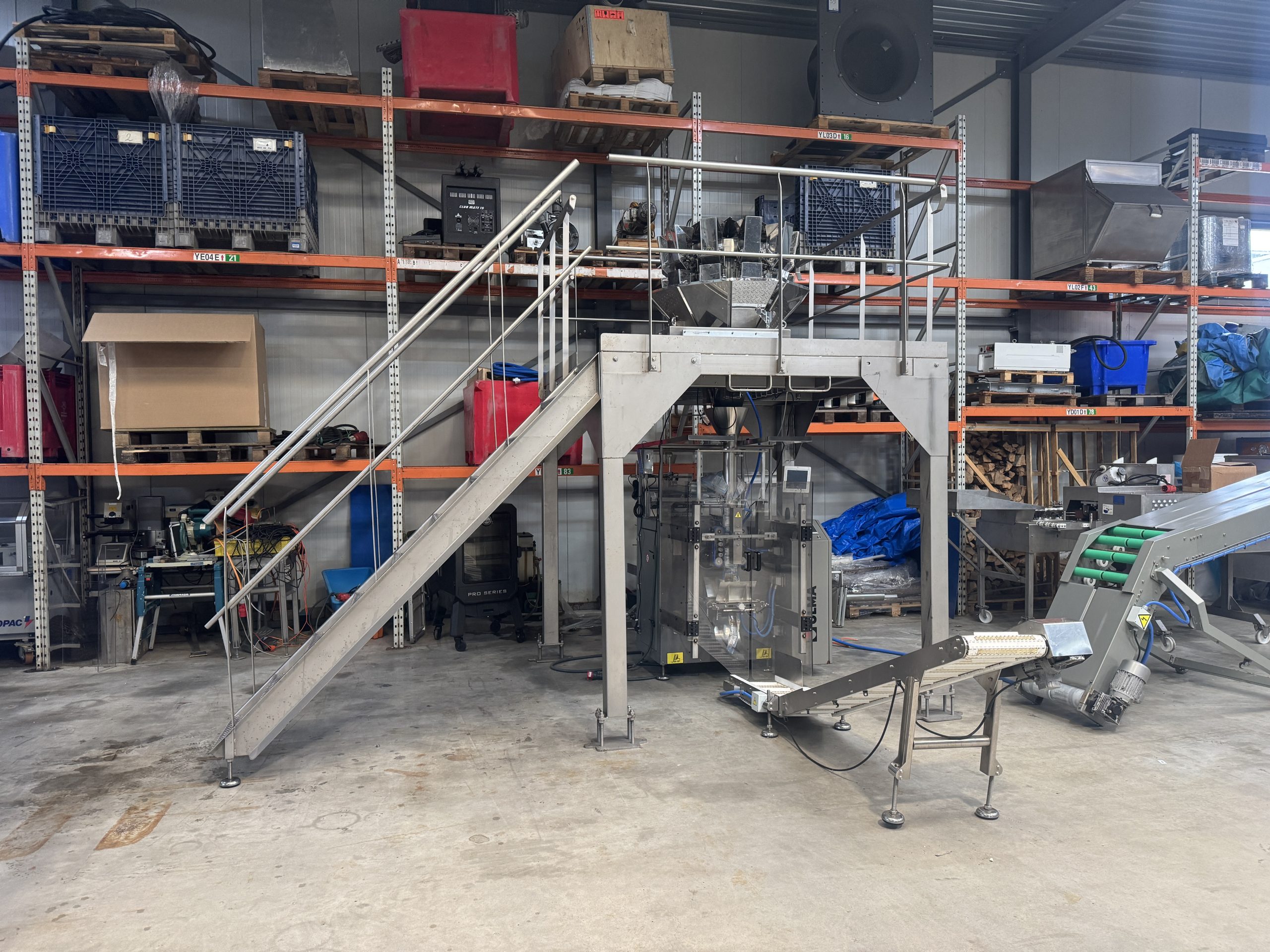

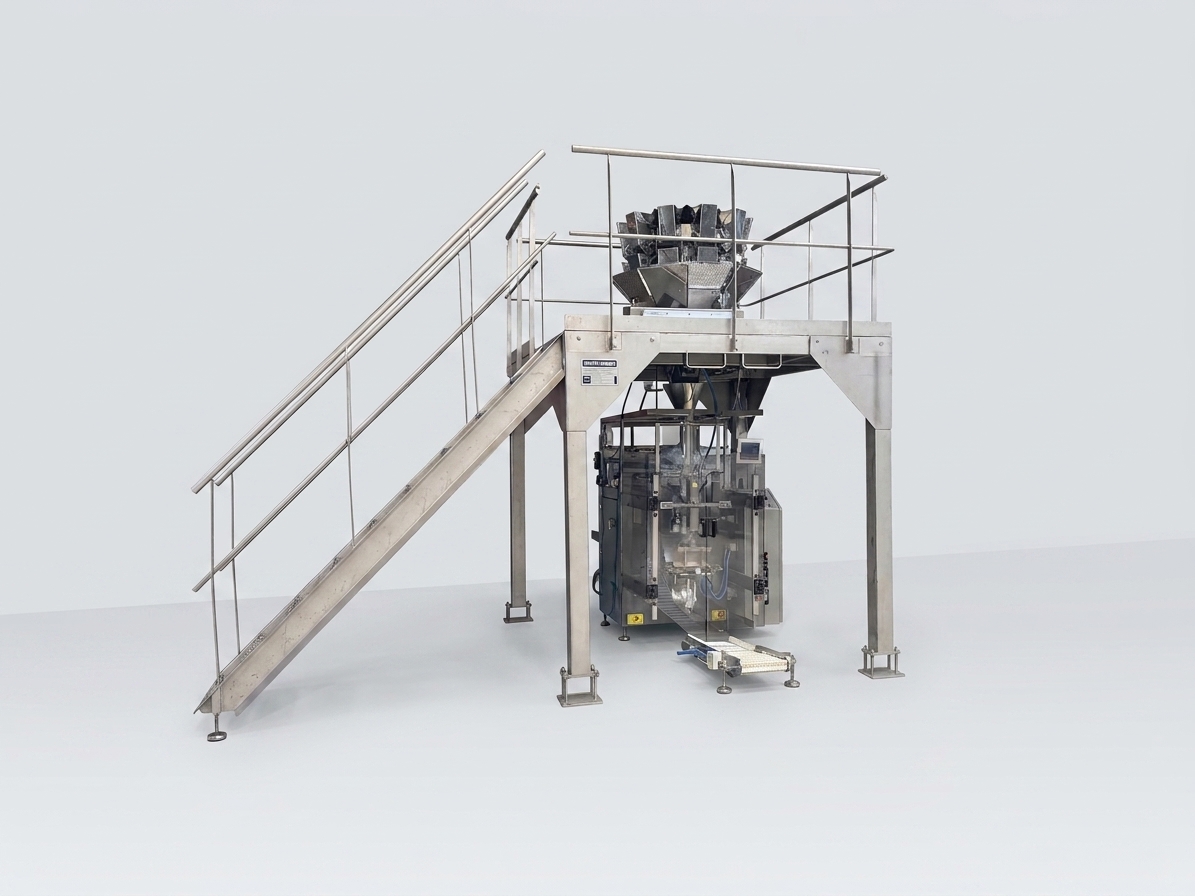

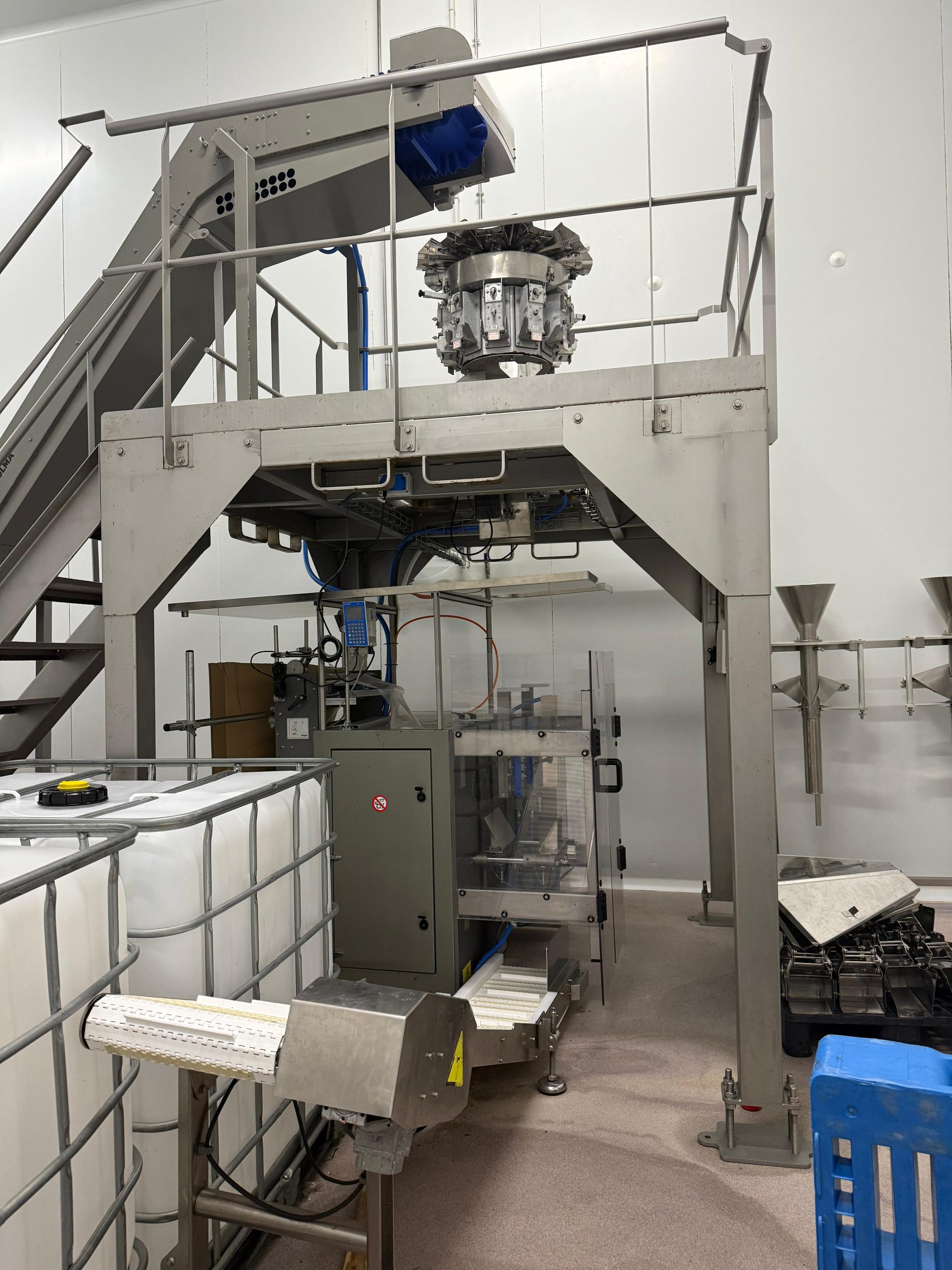

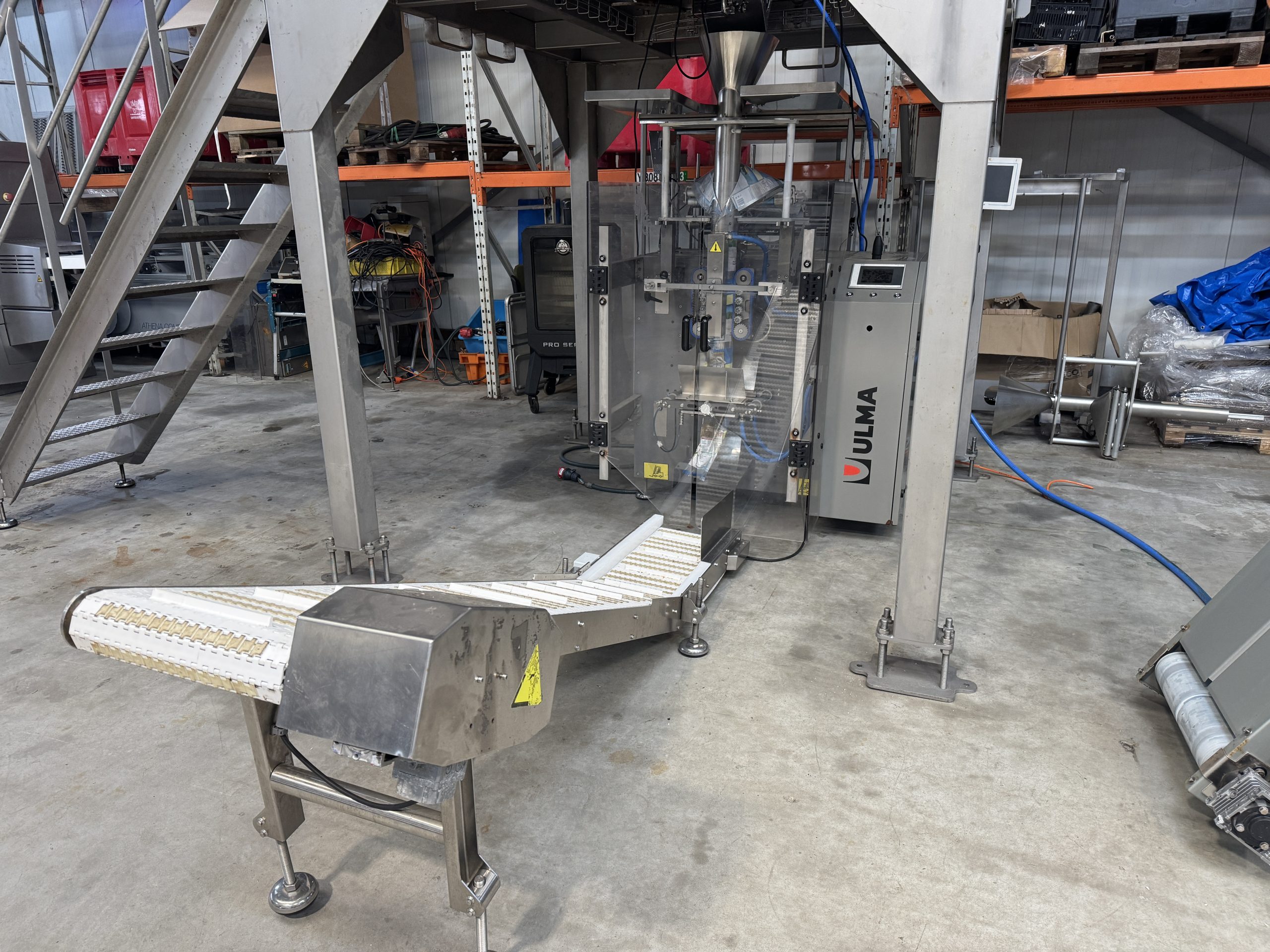

Ulma weighing and packing line
Complete weighing and packaging line with Ulma Multihead Weigher and Ulma Vertical Bagger.
This line is consist of the following machinery:
- Infeed conveyor belt;
- Ulma Multihead Weigher;
- Ulma VTI 200 Vertical Bagger;
- Outfeed conveyor belt;
- Platform;
- Stair;

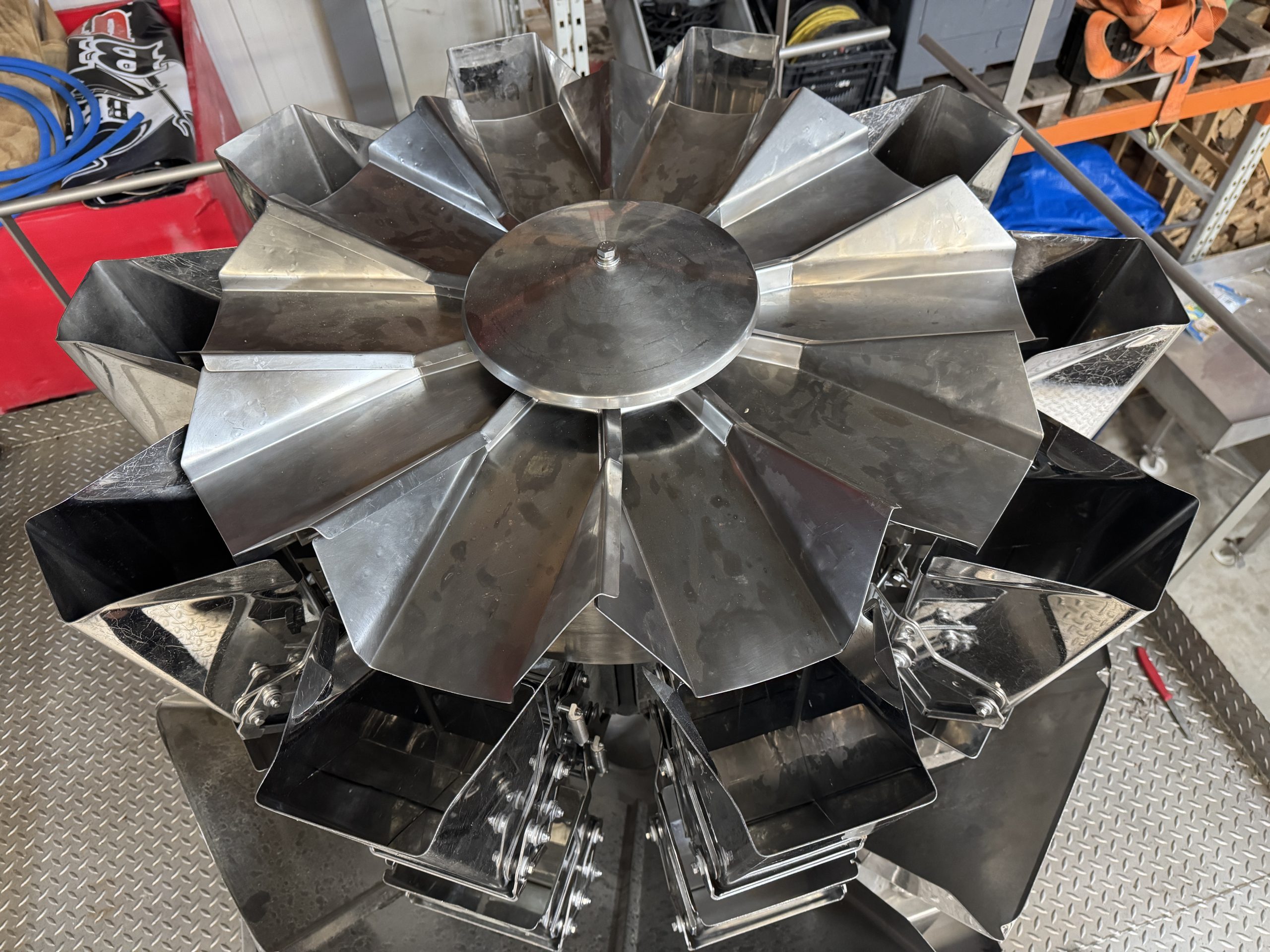

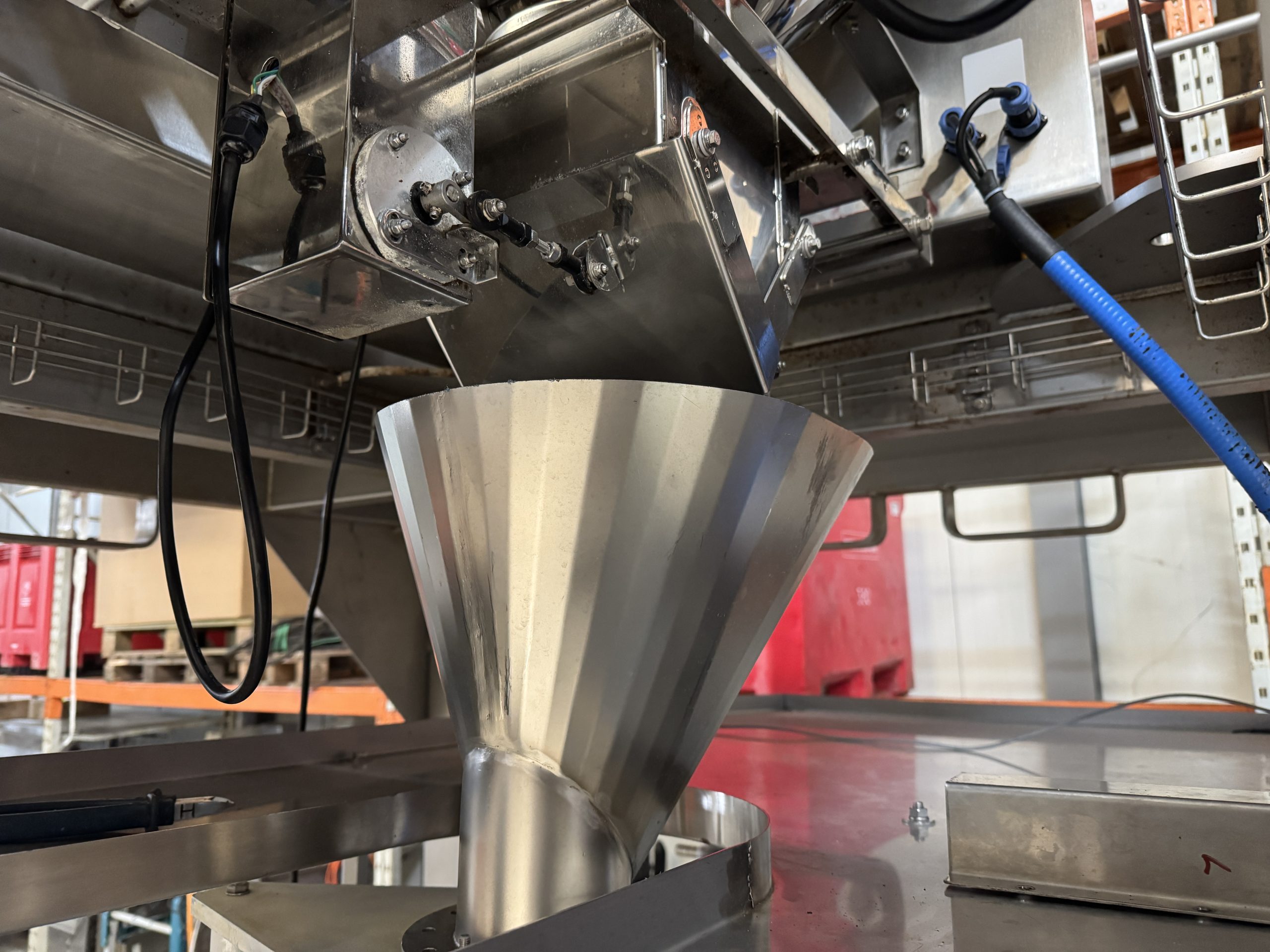

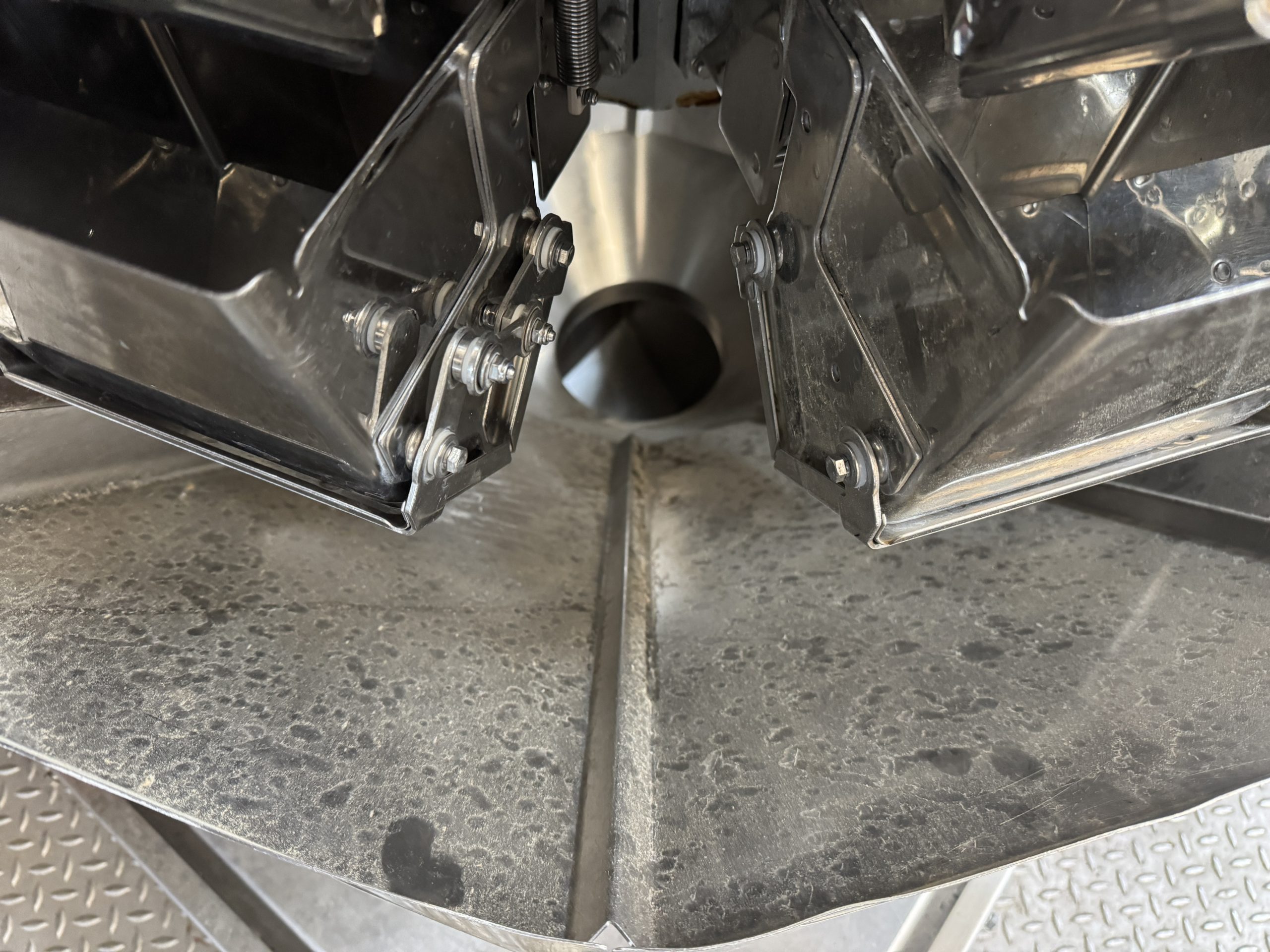

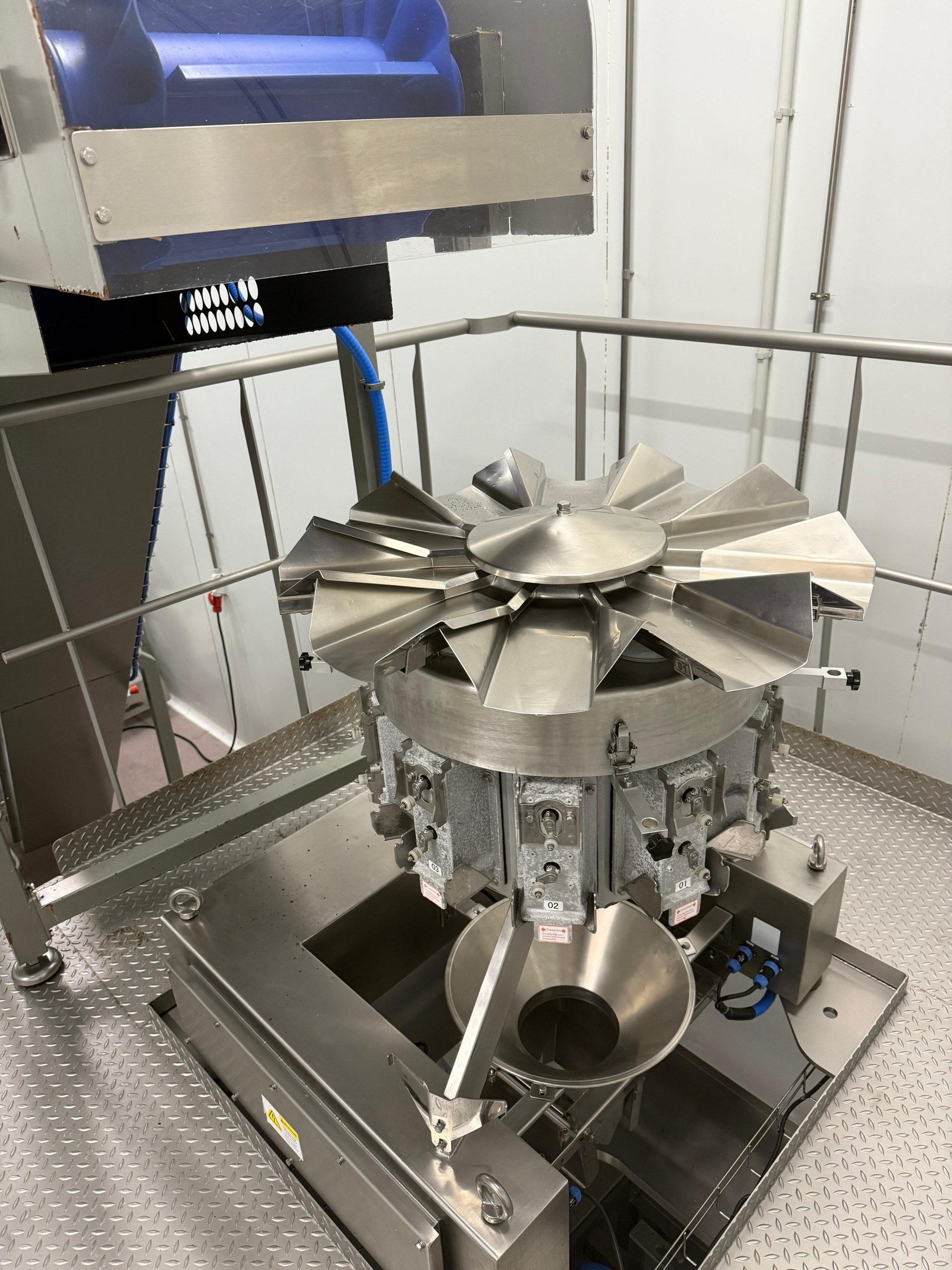

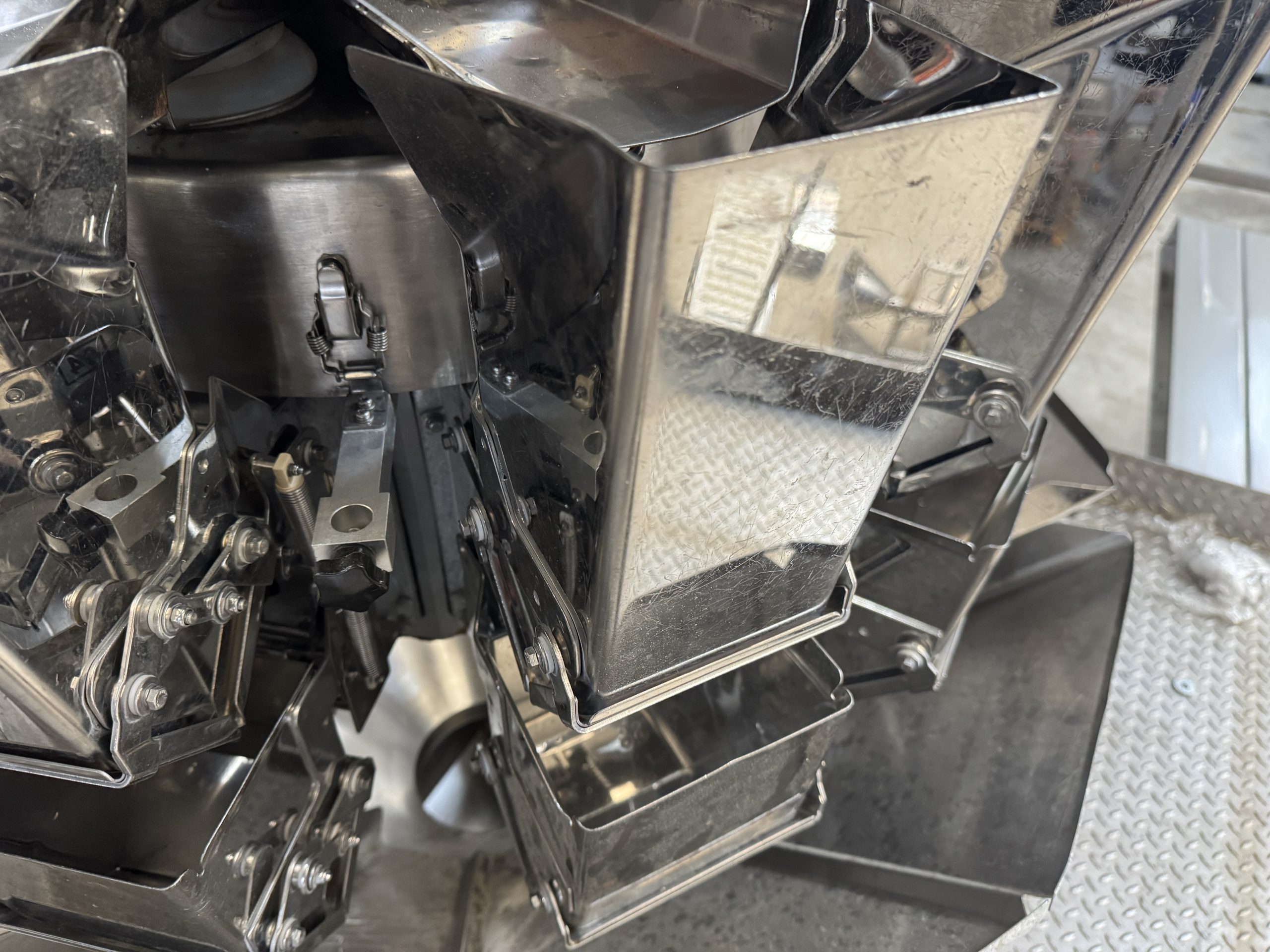

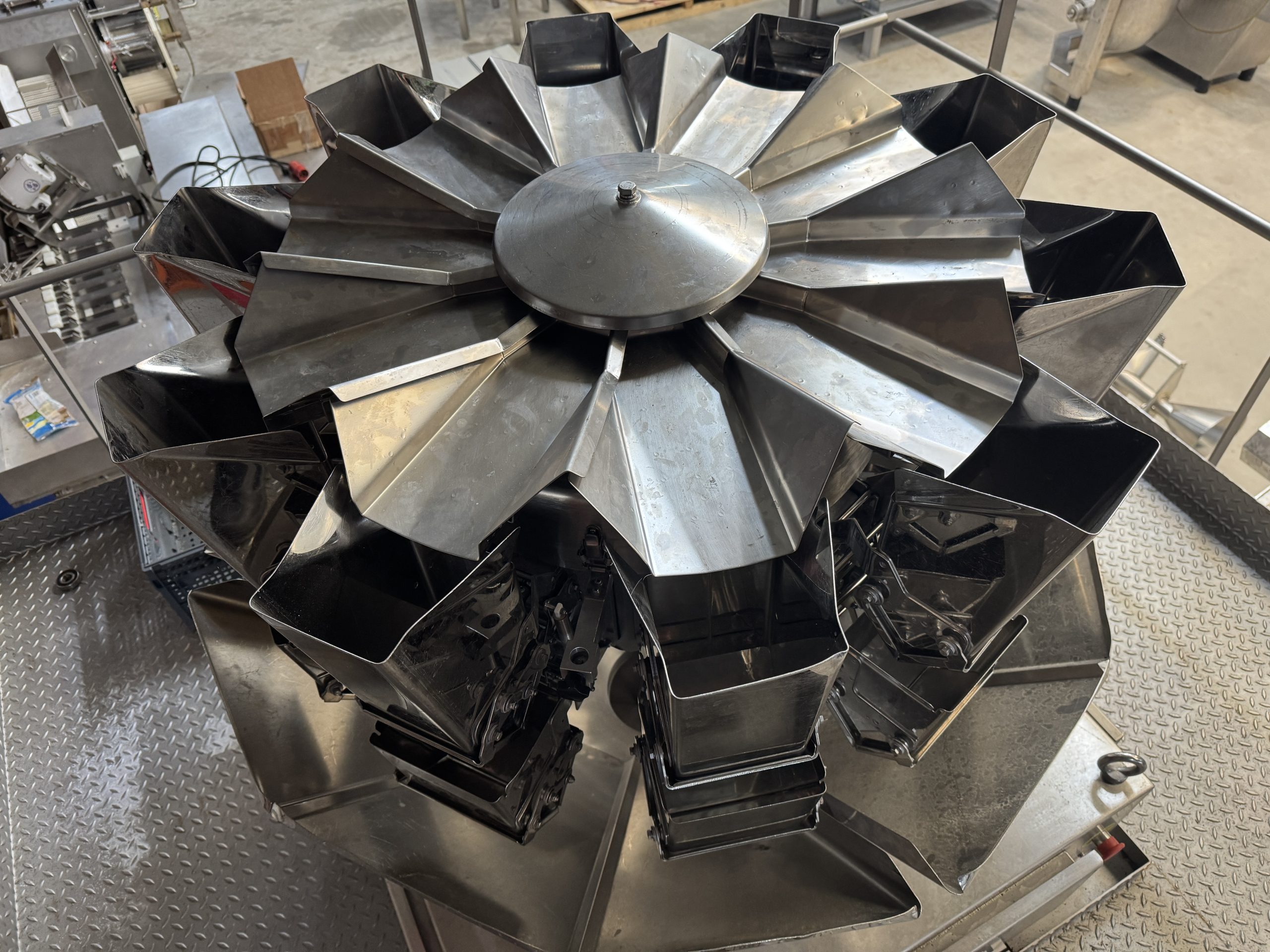

Ulma Multihead Weigher
| Manufacturer: | Ulma |
| Year: | 2019 |
| Max. weighing speed: | 30 bags/minute |
| Number of heads: | 10 |
| Volume of heads: | 2,5 liter |
| Max. weighing range: | 5.000 grams |
| Power: | 400V / 50Hz / 1kW |

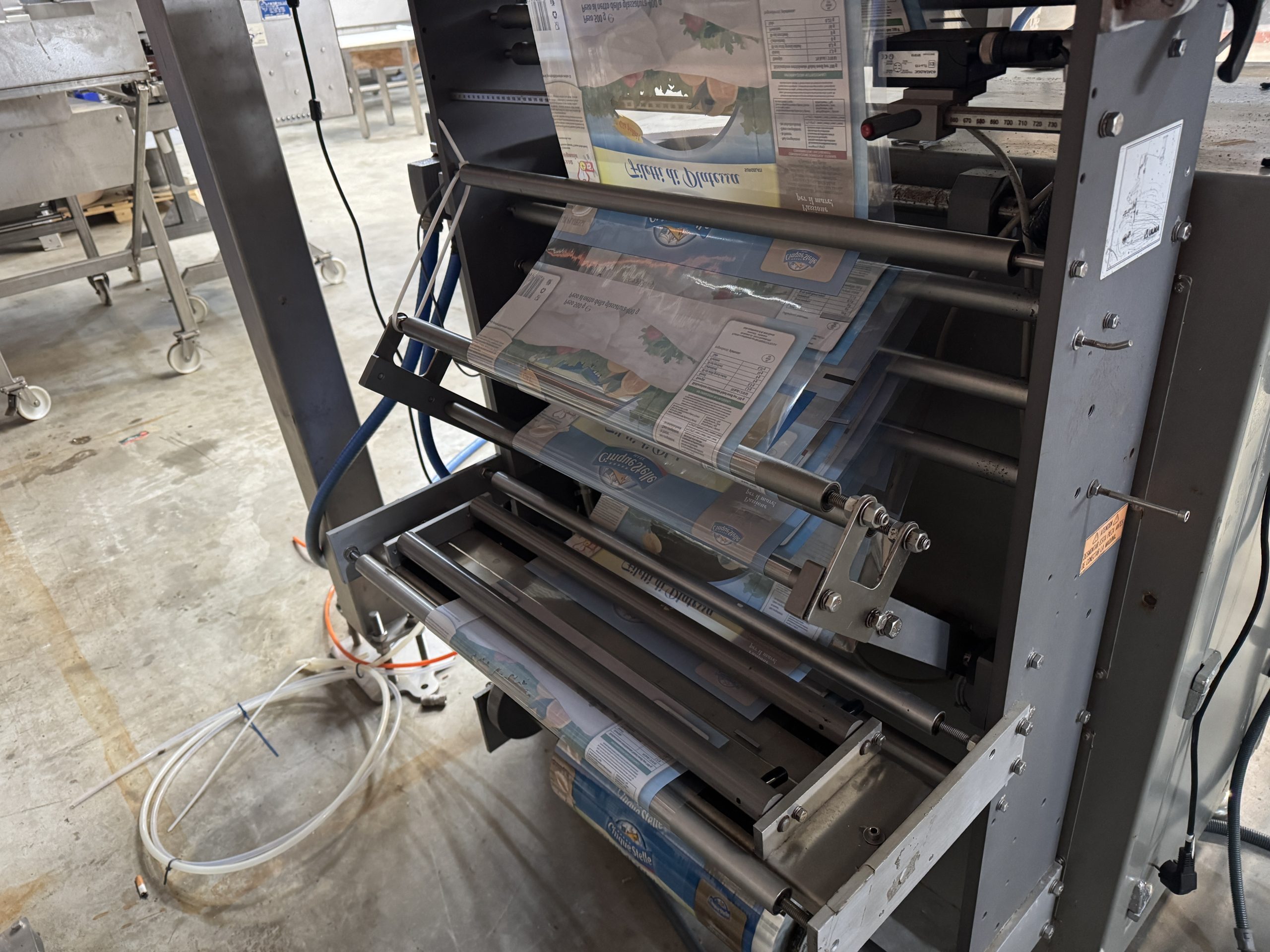

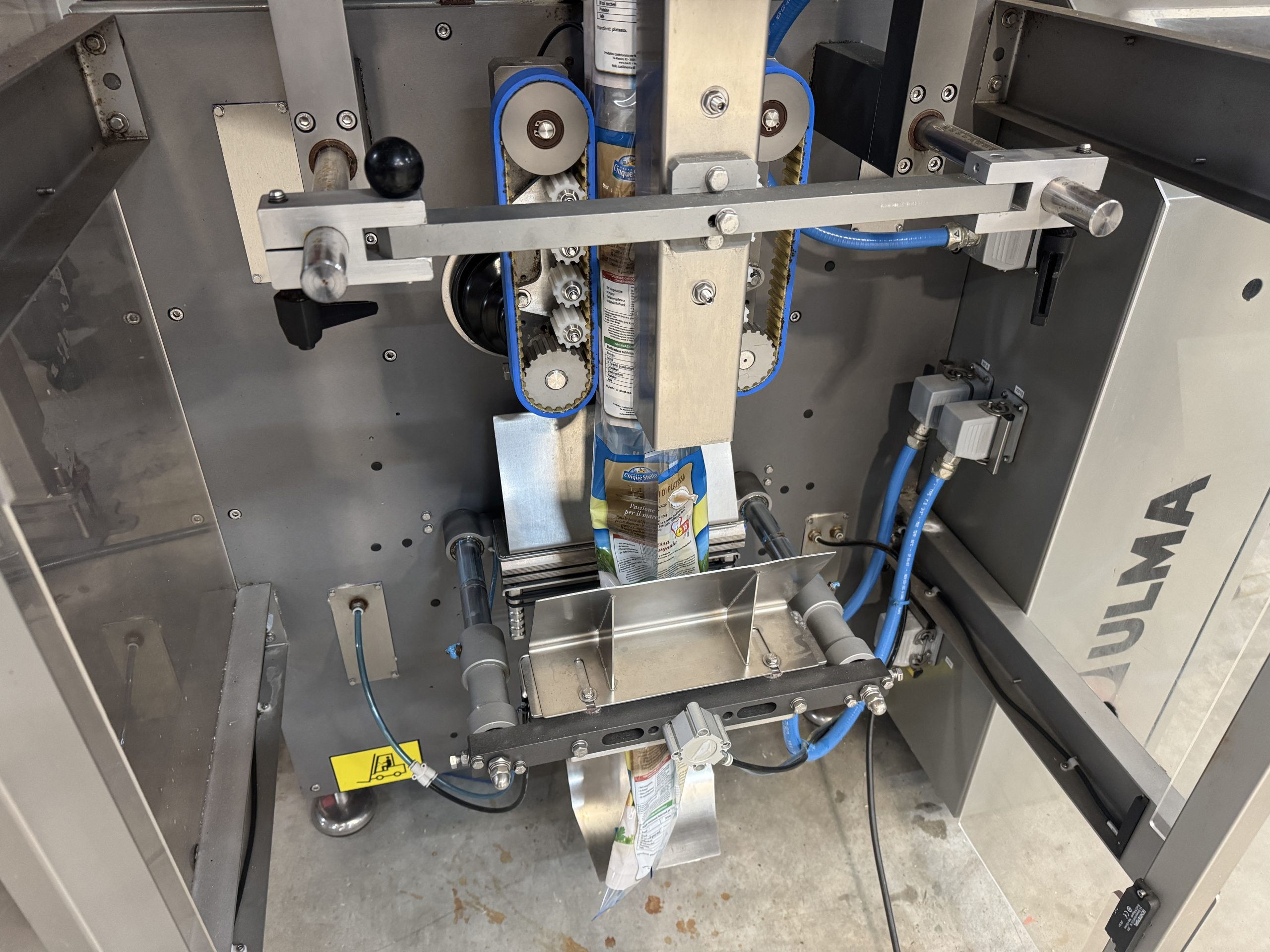

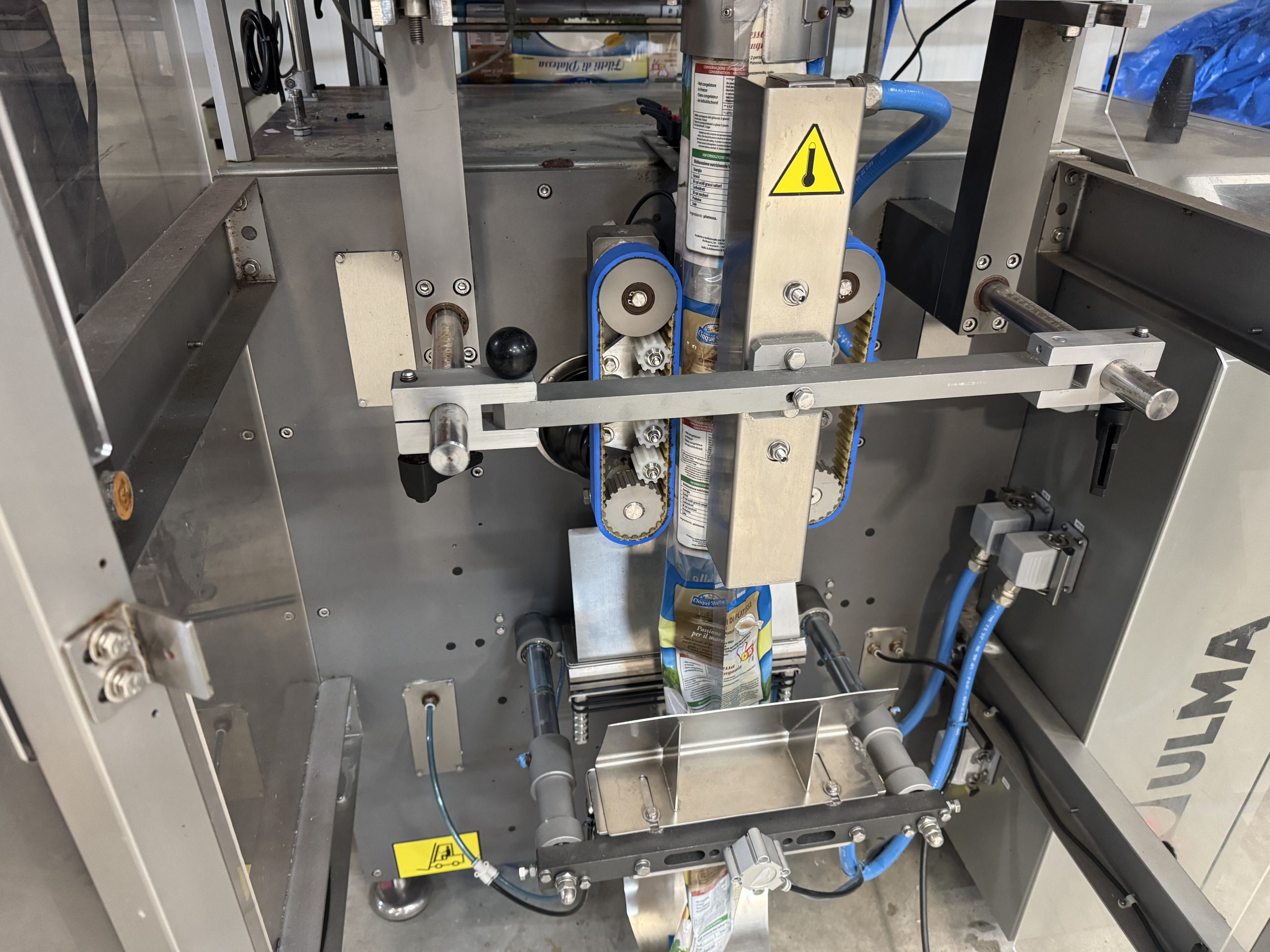

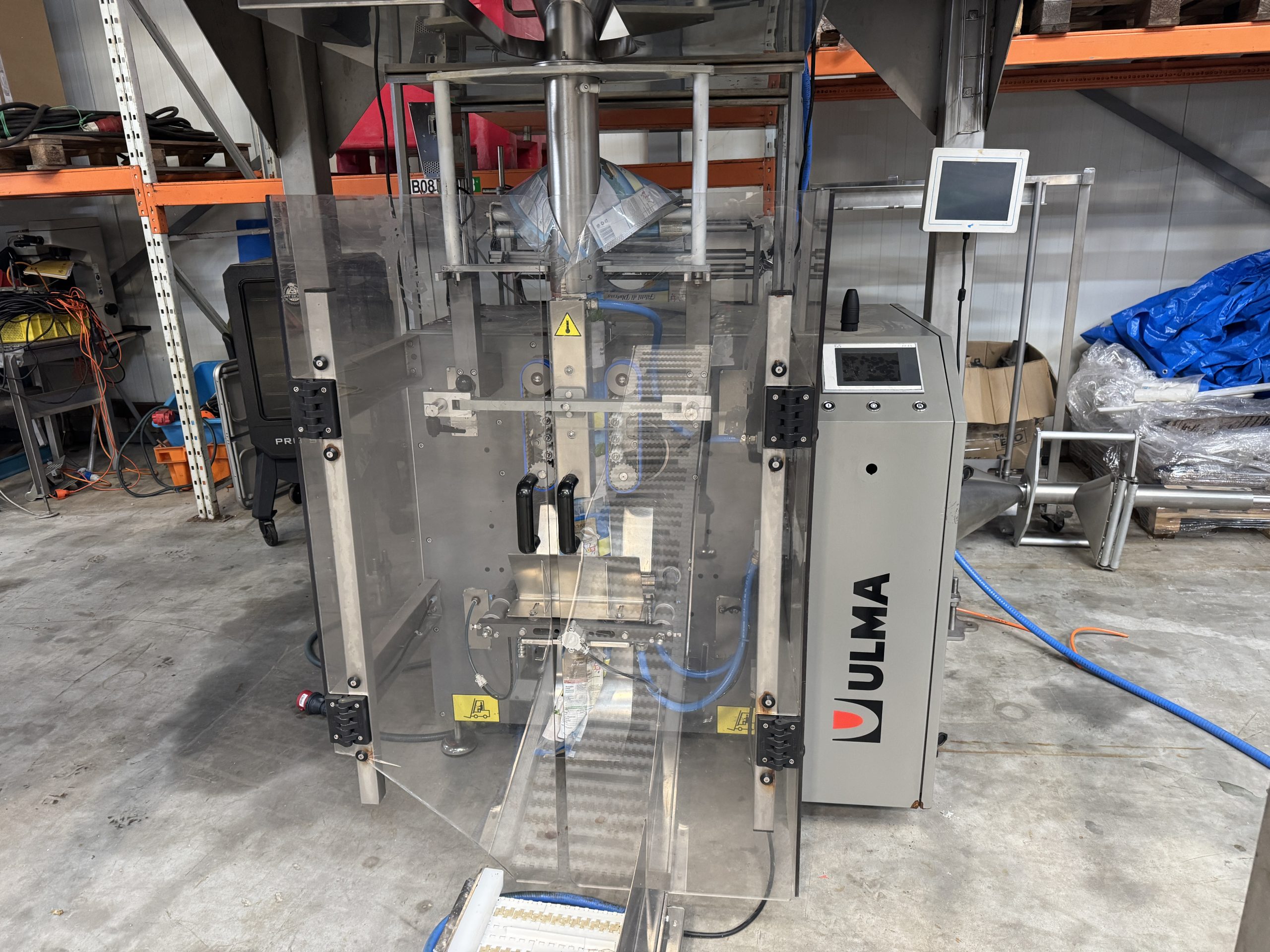

Ulma VTI 200 Vertical Bagger
The VTI 200 machine has been specifically designed for the wrapping of a wide range of many different products types and focuses on markets where the main requirements are, simplicity, reliability, and easy operation of the machine.

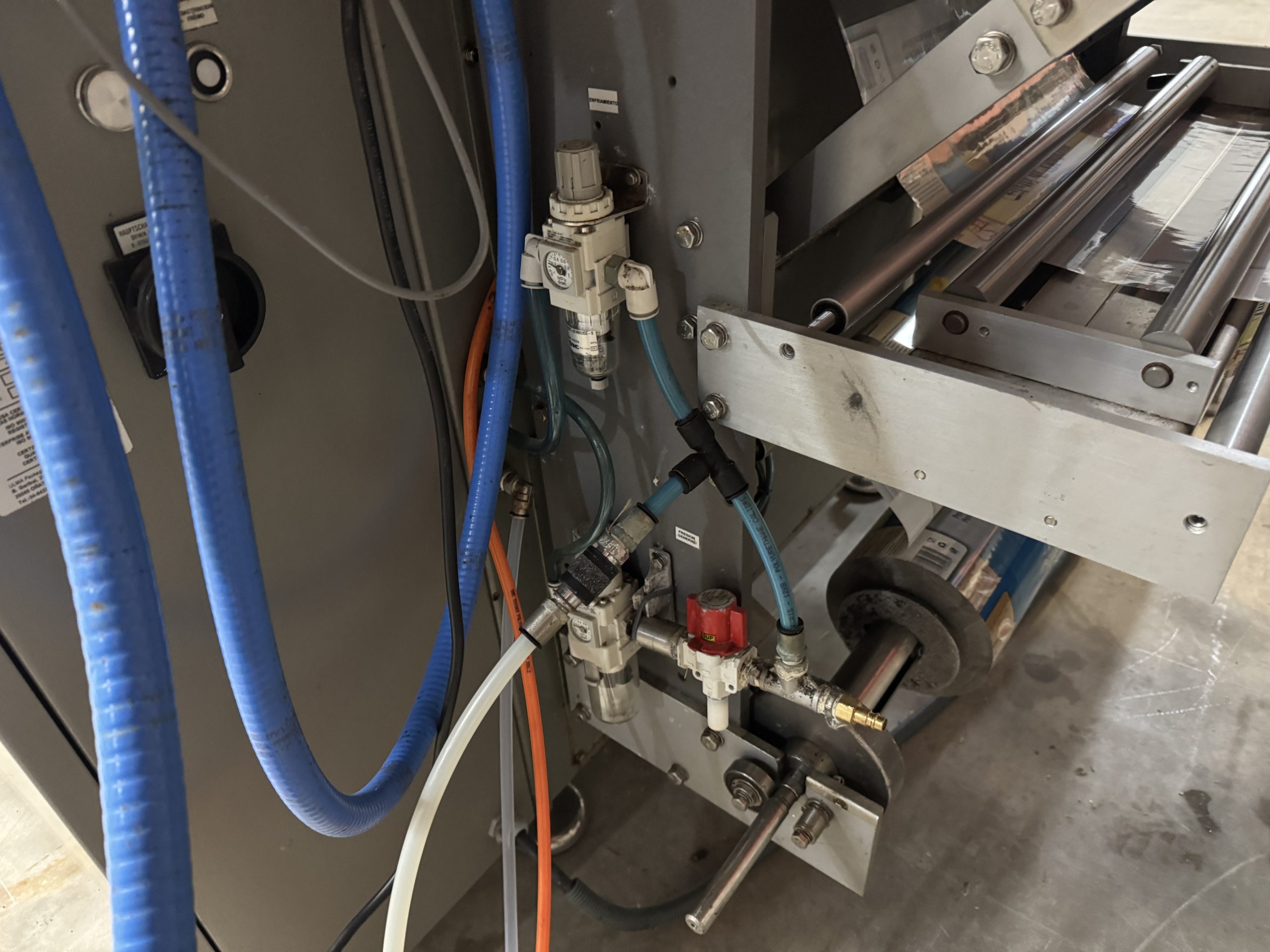

The combination of pneumatic operation of the horizontal sealer and an AC motor for the draw down belts provides the machine with a great versatility to work in many different environments. The robustness of all the mechanical and electrical parts, a compact design and the ease of operation together with low maintenance requirements makes the ideal competitively priced machine for intermediate speed applications.

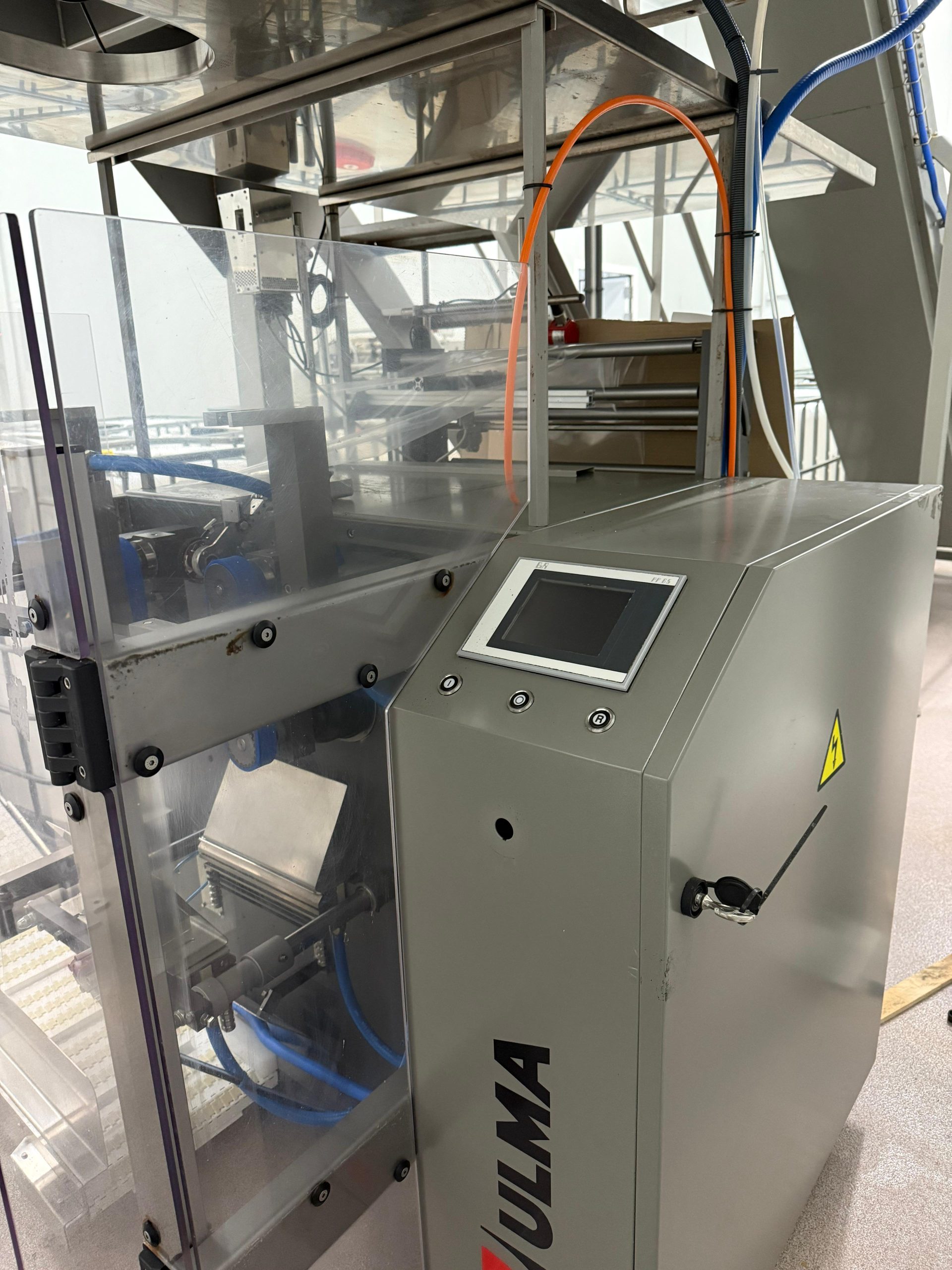

The machine is operated via a 5″ colour touch screen with integral industrial PC. All machine parameters are adjusted and saved within this interface resulting in a very flexible and quick change over machine.
| Manufacturer: | Ulma |
| Model: | VTI 200 |
| Year: | 2019 |
| Capacity: | Max. 70 bags/minute |
| Film reel width max.: | 600 mm |
| Film reel outer max.: | 450 mm |
| Film reel core max.: | 76 mm |
| Power: | 400V / 50Hz / 4kW |

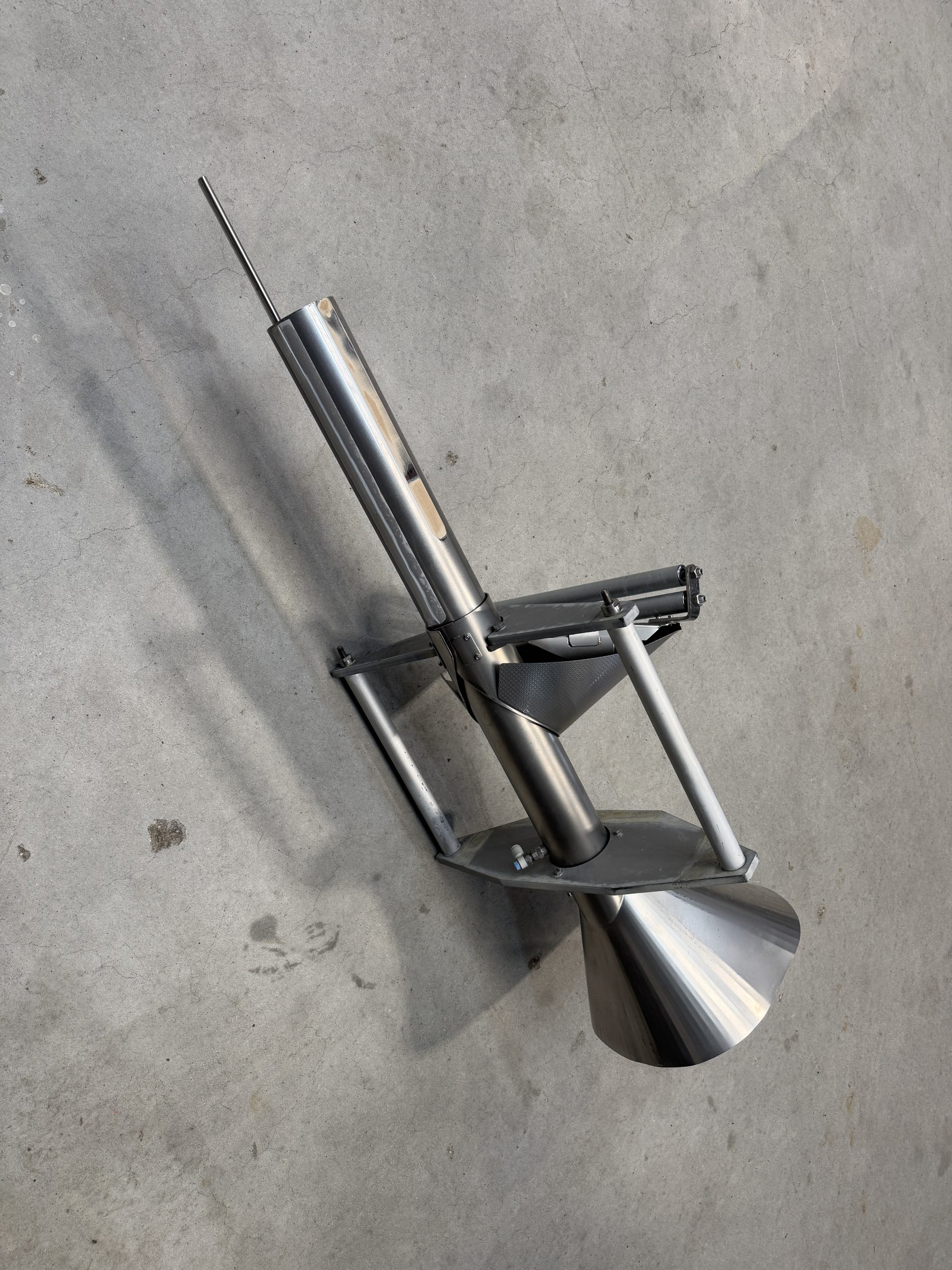

The machine is equipped with the following tool:
- Bag Type: Pillow Bag;
- Dimensions bag: BOPP LxW 145x145mm / Laminate LxW 170x170mm
- Foil Width: BOPP 310mm / Laminate 365mm;
- Max product dimensions: 70mm
