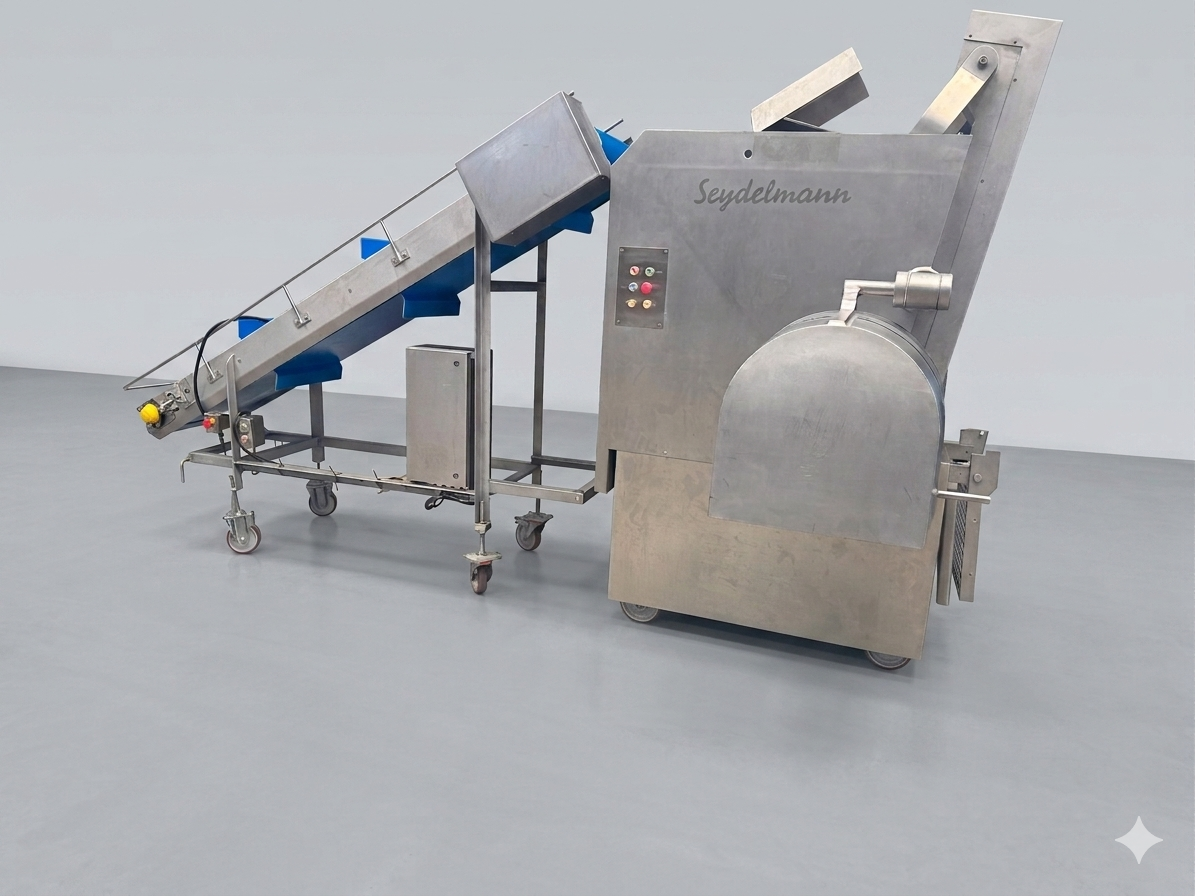

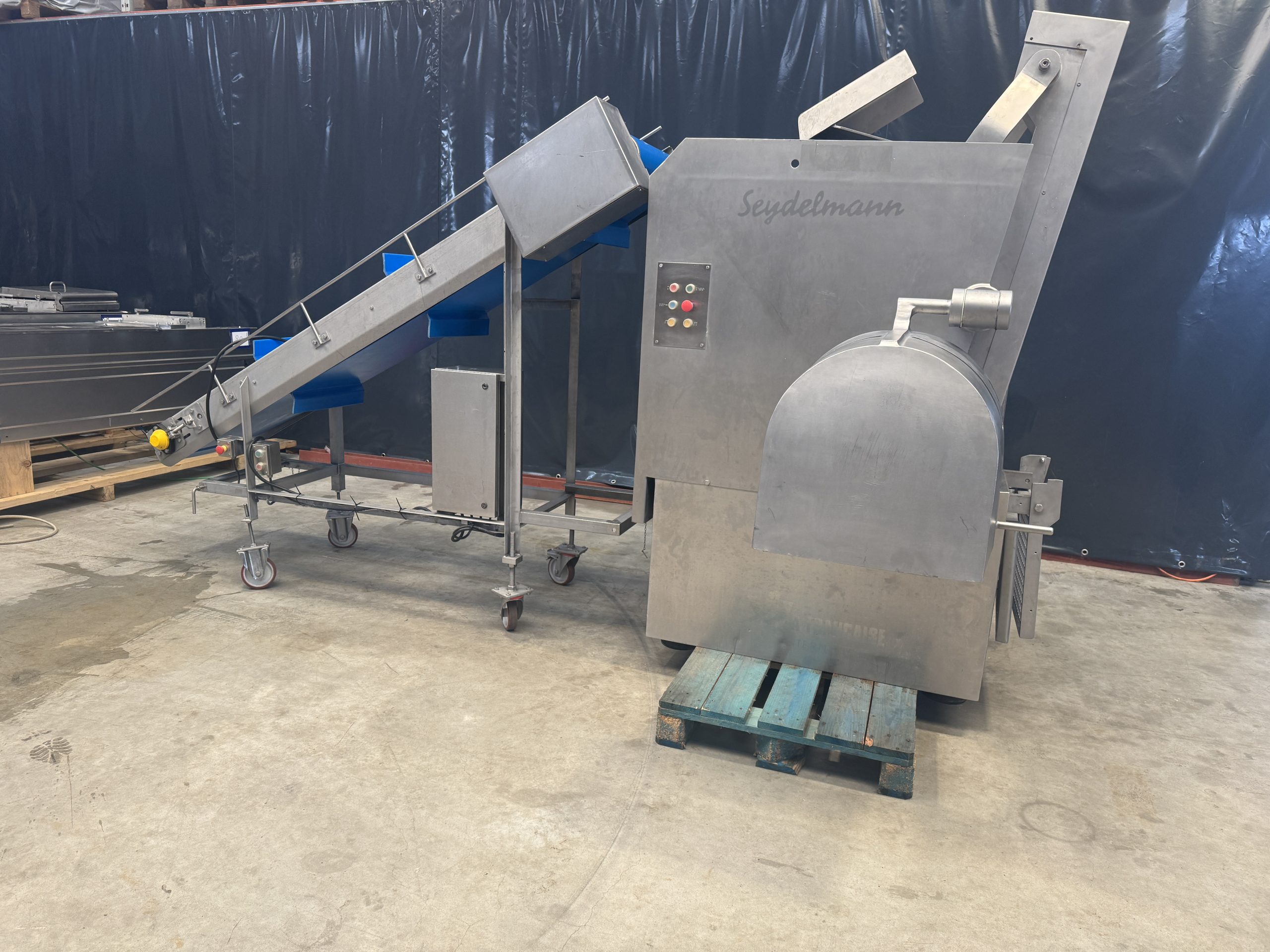

Seydelmann GW 300 Frozen Meat Grinder

Thanks to their robust construction and their extremely strong power of motor, Seydelmann Frozen Meat Grinders guarantee a perfect cutting image even when grinding whole frozen meat blocks down to -25 °C (-13 °F). A very high hourly output and a very uniform grain size is achieved with any material. Seydelmann Frozen Meat Grinders can be integrated ideally into production lines.

The machine frame is made of stainless steel and completely closed so that all pipes, motors and other parts are integrated into the machine. All edges are rounded and all surfaces on the machine are polished very precisely and designed with a slope so that cleaning water will drain completely from all surfaces. Thanks to embedded covers and the closed bottom of the machine frame water cannot enter the machine and pollution is prevented.

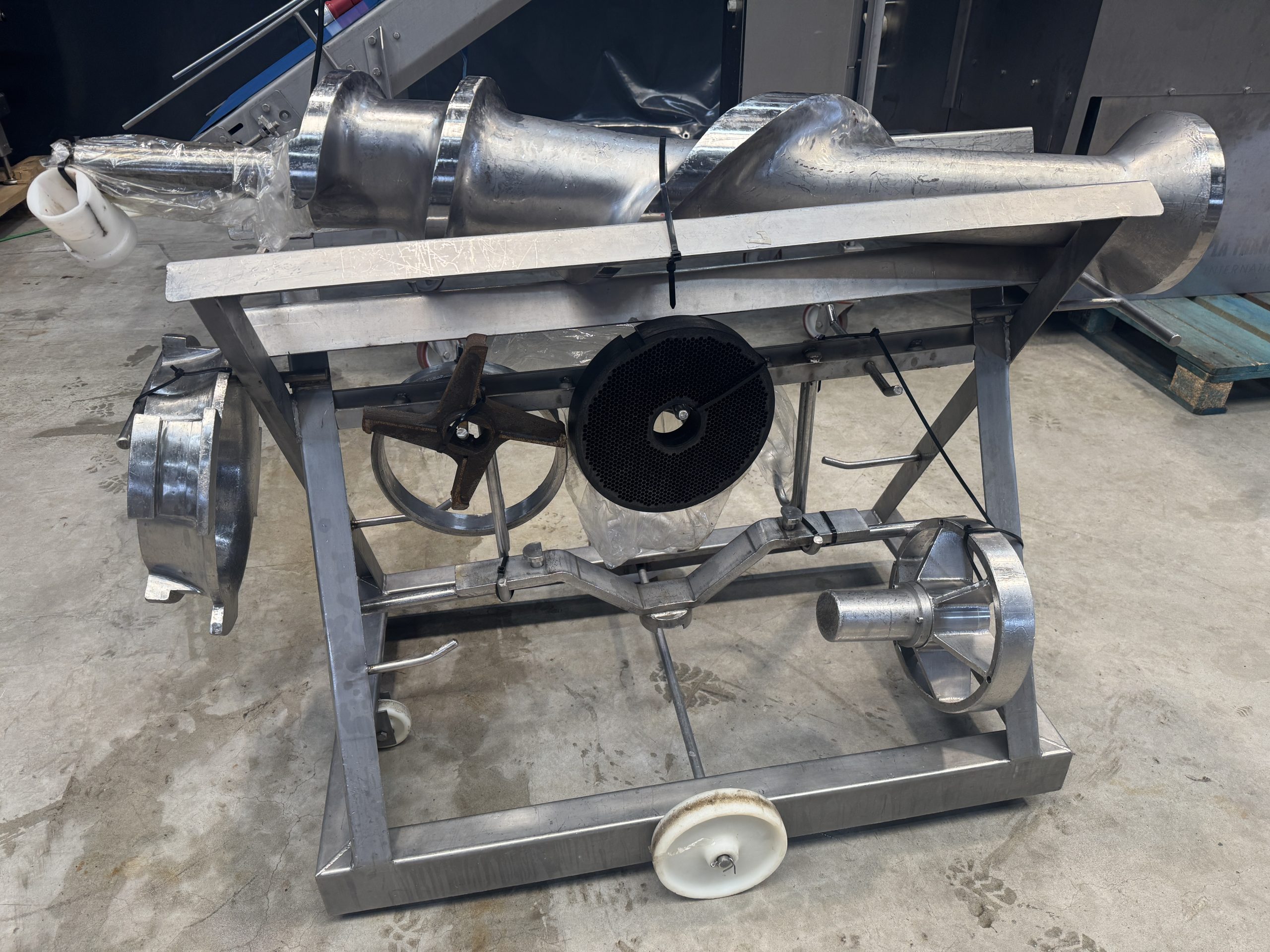

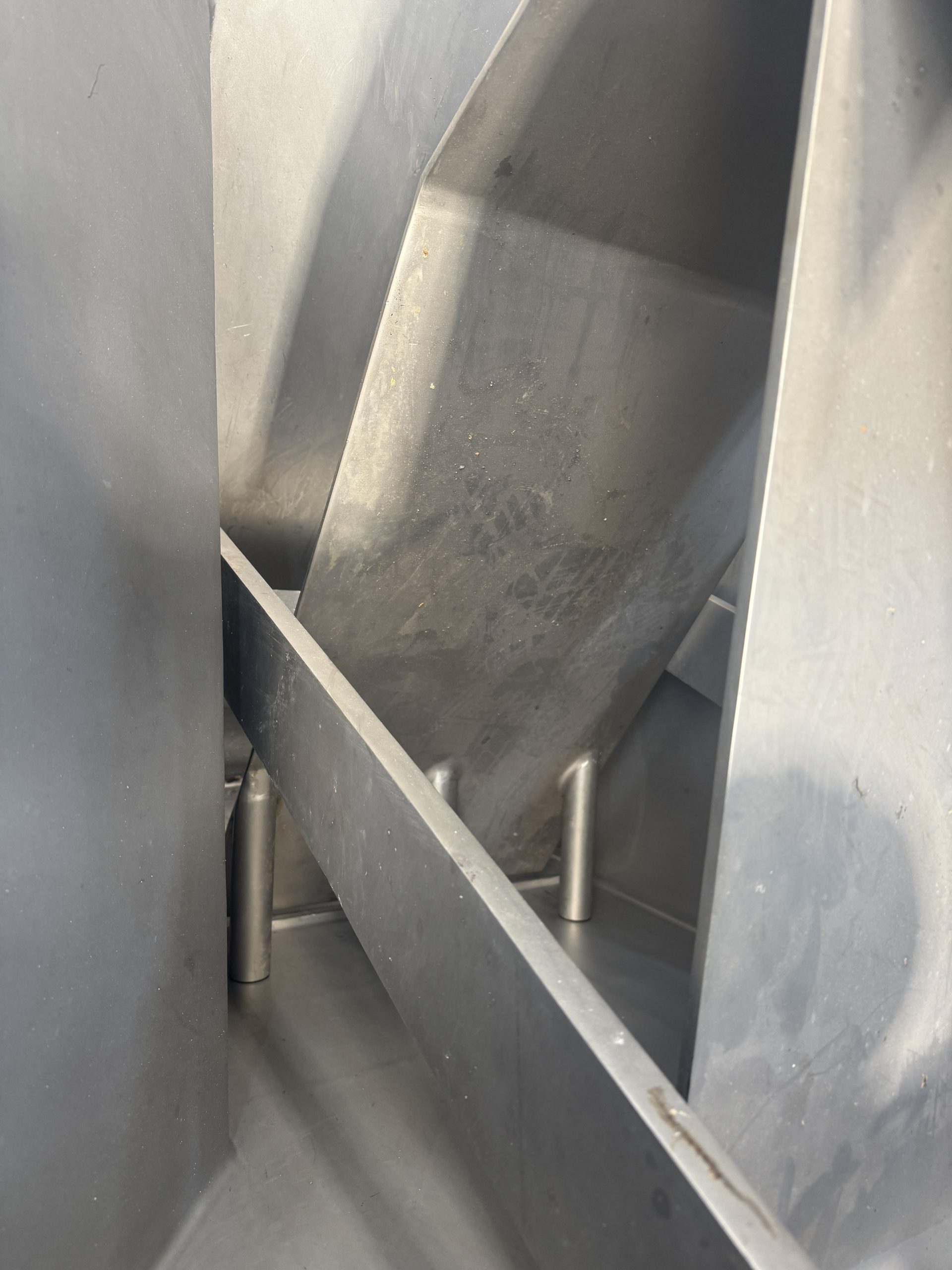

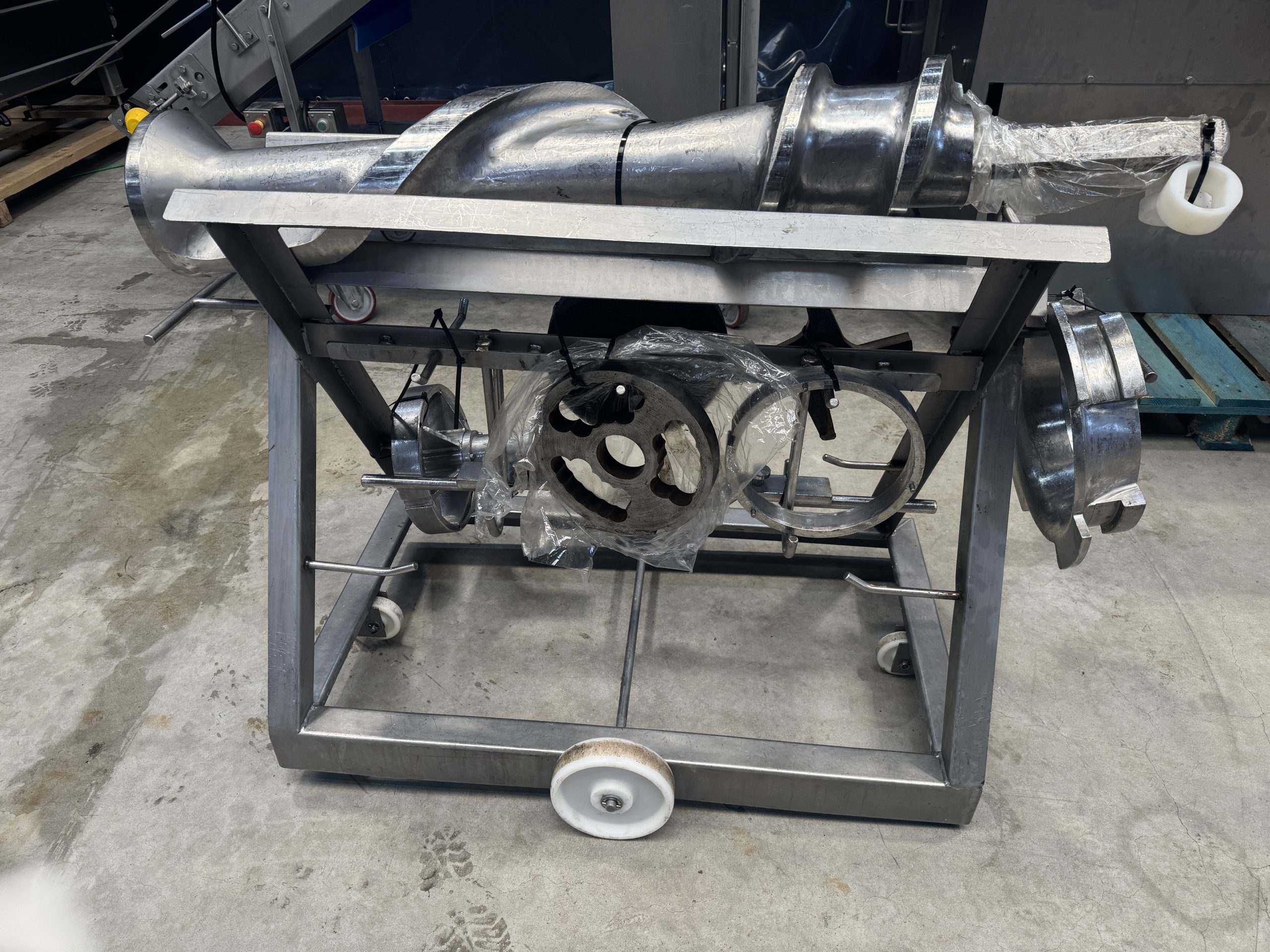

The first stage of the size reduction process takes place in the hopper with the worm of the Frozen Meat Grinder. With its extended profile and relief grinding windings, the worm cuts off approximately 8 cm (3.2 in) of the frozen meat block with every rotation, and carries the meat to the cutting set for grinding. The GW 300 is equipped with a two-speed drive. The first speed is for deep-frozen blocks of meat or when using hole plates with small holes and the second
speed is suitable for reduction with hole plates with bigger holes.
